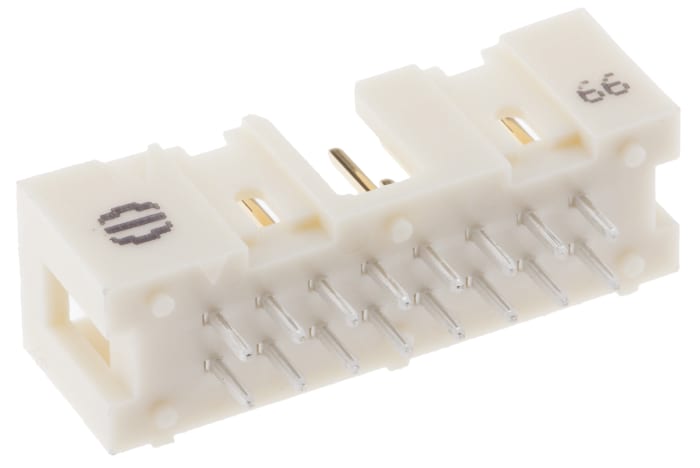

HARTING SEK 19 Series Right Angle Through Hole PCB Header, 16 Contact(s), 2.54 mm Pitch, 2 Row, Shrouded
Technical Document
Specifications
Brand
HartingSeries
SEK 19
Product Type
PCB Header
Pitch
2.54mm
Current
1A
Number of Contacts
16
Housing Material
Polycyclohexylenedimethylene Terephthalate
Number of Rows
2
Orientation
Right Angle
Shrouded/Unshrouded
Shrouded
Connector System
Wire-to-Board
Mount Type
Through Hole
Contact Material
Copper Alloy
Contact Plating
Gold
Minimum Operating Temperature
-55°C
Row Pitch
2.54mm
Termination Type
Solder
Contact Gender
Male
Maximum Operating Temperature
125°C
Standards/Approvals
No
Voltage
1000 V
Product details
Male Header (Low Profile)
SMC male header with solder pins 2.9 mm
High temperature version
