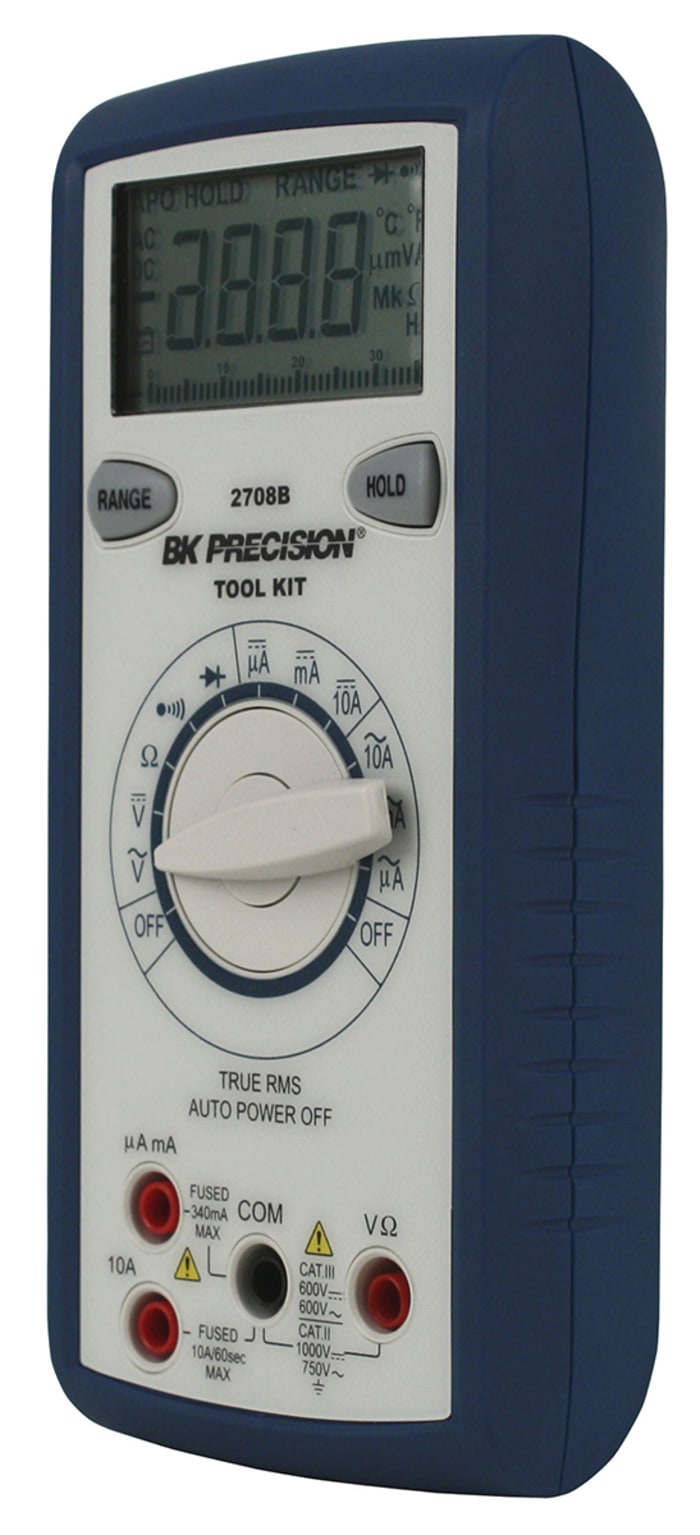

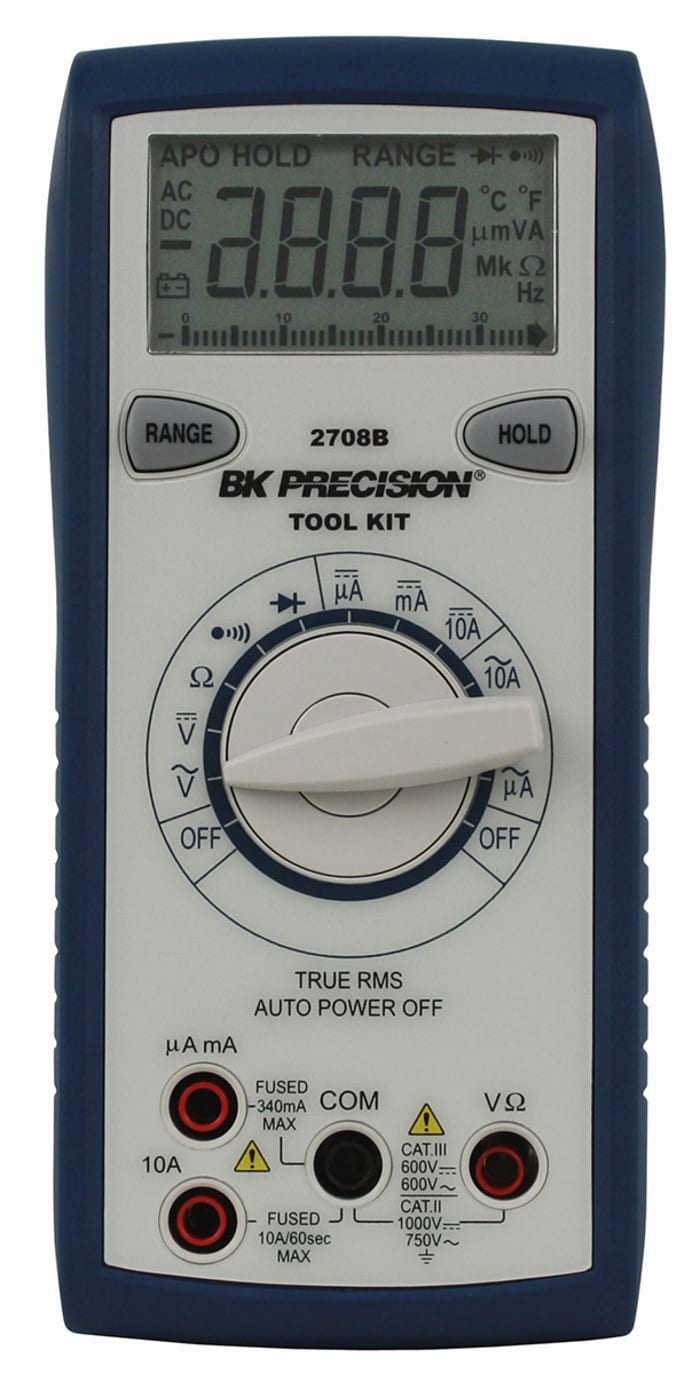

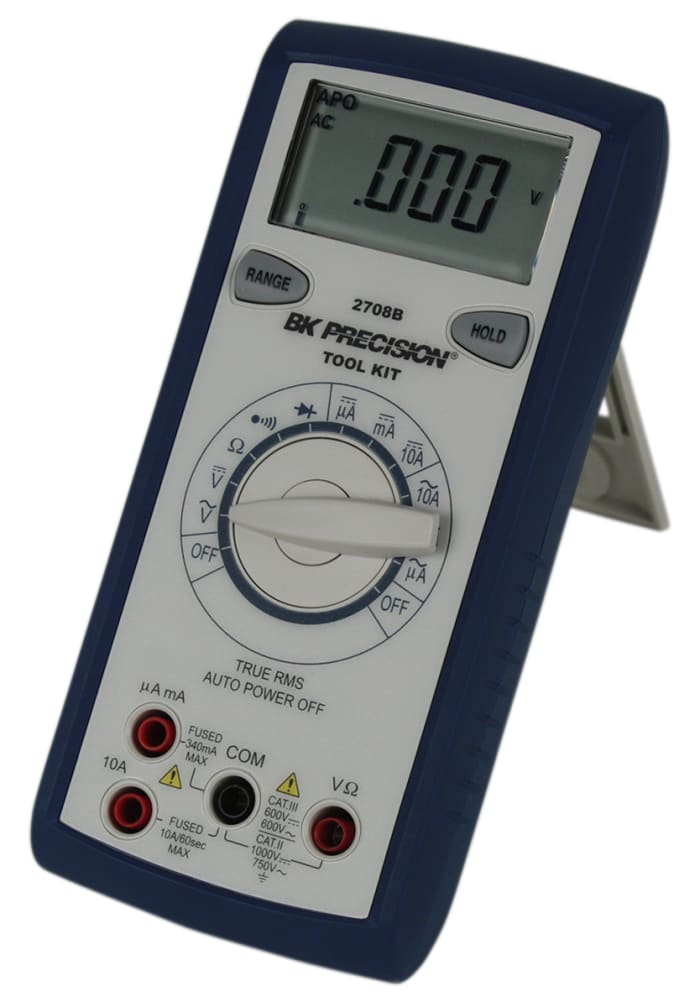

BK Precision BK2708B Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 750V ac Max

Brand

Multimeter Type

Handheld

Model Number p

BK2708B

Display Type

Digital

Functions Measured

AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Diode, Resistance

Absolute Maximum DC Current Measurement

10A dc

Absolute Maximum AC Current Measurement

10A ac

Absolute Maximum Resistance Measurement

34MΩ

Absolute Maximum AC Voltage Measurement

750V ac

Absolute Maximum DC Voltage Measurement

1000V dc

Maximum Frequency

500Hz

AC Current Measurement Resolution

0.1µA ac

DC Current Measurement Resolution

0.1µA dc

Resistance Measurement Resolution

100mΩ

DC Voltage Measurement Resolution

0.1mV dc

AC Voltage Measurement Resolution

1mV ac

Safety Category Level

CAT II, CAT III

Weight

285g

Best DC Current Accuracy

±3% + 3 Digits

Safety Category Voltage

600 V, 750 V, 1000V

Battery Type

9V

Dimensions

78 x 42.5 x 165mm

Best DC Voltage Accuracy

±1% + 2 Digits

Best Resistance Measurement Accuracy

±5% + 5 Digits

Maximum Operating Temperature

+50°C

Best AC Voltage Accuracy

±2% + 8 Digits

Best AC Current Accuracy

±3.5% + 10 Digits

Minimum Operating Temperature

0°C

Height

165mm

Width

42.5mm

Length

78mm

Izcelsmes valsts

Taiwan, Province Of China
