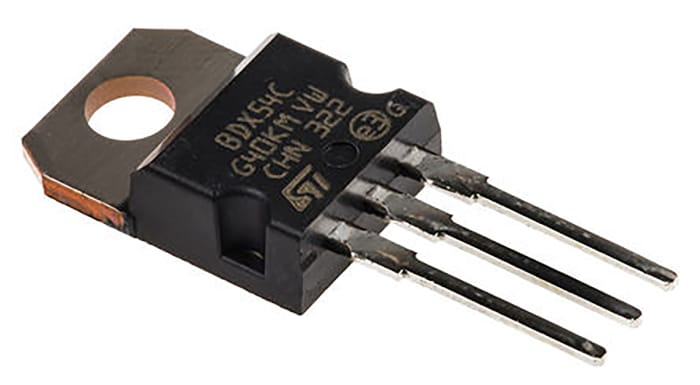

STMicroelectronics BDX54C PNP Darlington Transistor, 8 A 100 V HFE:750, 3-Pin TO-220
Tehniskie dokumenti
Specifikācija
Brand
STMicroelectronicsTransistor Type
PNP
Maximum Continuous Collector Current
8 A
Maximum Collector Emitter Voltage
100 V
Maximum Emitter Base Voltage
5 V
Package Type
TO-220
Mounting Type
Through Hole
Pin Count
3
Transistor Configuration
Single
Number of Elements per Chip
1
Minimum DC Current Gain
750
Maximum Base Emitter Saturation Voltage
2.5 V
Maximum Collector Base Voltage
100 V
Maximum Collector Emitter Saturation Voltage
2 V
Maximum Collector Cut-off Current
0.2mA
Maximum Operating Temperature
+150 °C
Length
10.4mm
Height
9.15mm
Width
4.6mm
Dimensions
10.4 x 4.6 x 9.15mm
Minimum Operating Temperature
-65 °C
Produkta apraksts
PNP Darlington Transistors, STMicroelectronics
Bipolar Transistors, STMicroelectronics
A broad range of NPN and PNP Bipolar Transistors from STMicroelectronics including General Purpose, Darlington, Power and High-Voltage devices in both SMT and Through-hole packages.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
€ 9,00
€ 0,45 Katrs (tiek piegadats Tubina) (bez PVN)
€ 10,89
€ 0,544 Katrs (tiek piegadats Tubina) (Ieskaitot PVN)
Industriālais iepakojums (Penālis)
20
€ 9,00
€ 0,45 Katrs (tiek piegadats Tubina) (bez PVN)
€ 10,89
€ 0,544 Katrs (tiek piegadats Tubina) (Ieskaitot PVN)
Industriālais iepakojums (Penālis)
20
Noliktavas stāvoklis patreiz nav pieejams
Lūdzu pārbaudiet vēlreiz vēlāk
| Daudzums | Vienības cena | Per Penālis |
|---|---|---|
| 20 - 40 | € 0,45 | € 4,50 |
| 50 - 90 | € 0,409 | € 4,09 |
| 100 - 190 | € 0,367 | € 3,67 |
| 200+ | € 0,338 | € 3,38 |
