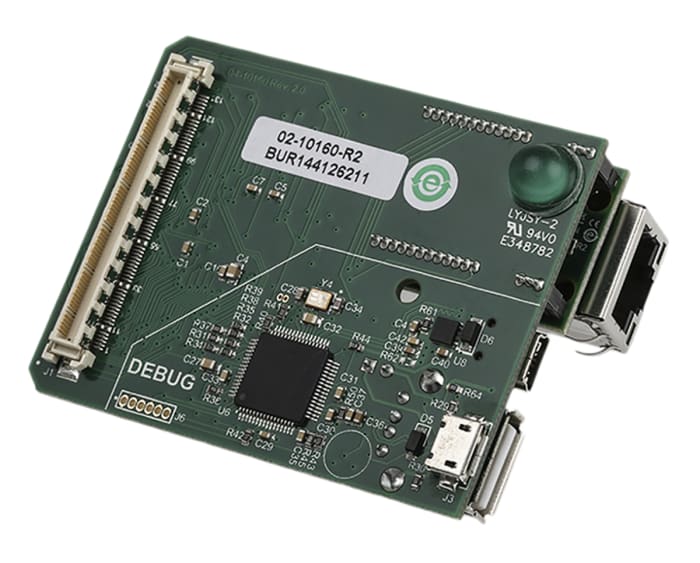

Microchip PIC32 MCU Starter Kit DM320004-2

Microchip Ethernet Starter Kit

The Microchip Ethernet starter kit is an innovation that provides the easiest and lowest-cost method to experience 10/100 Ethernet development with PIC32 microcontrollers. When combined with microchip’s free TCP/IP software, this kit gets your project running quickly. This microcontroller has an available CAN 2 0b peripheral and USB host/device/OTG. This starter kit features a socket that can accommodate various 10/100 Ethernet transceiver (RJ-45) PHY daughter boards for prototyping and development.

Features and Benefits

• USB-powered board
• Wake-On-LAN functionality
• USB and Ethernet connectors, user switches, and LEDs
• Integrated programmer/debugger
• Standard A to mini-B cable for the debugger
• Standard A to micro-B cable for USB application development
• PIC32 running at 80MHz with 512K flash, 128K RAM, 8 channel DMA, 8 channel DMA dedicated to Ethernet, CAN and USB
• Expansion connector enables the addition of microchip’s PIC32 expansion boards or the creation of your board

Applications

• Wireless communication
• Networking
• Development kit
• Ethernet control applications

Certifications

• IEEE 802.3az
