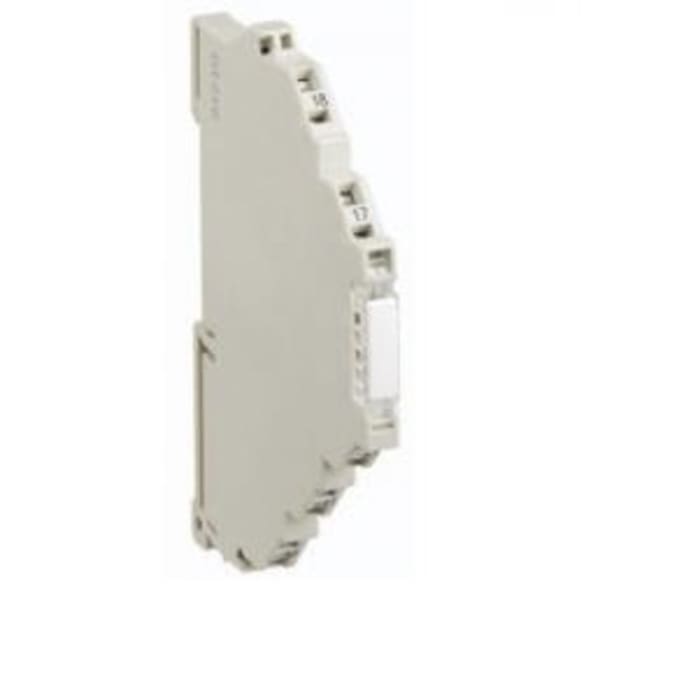

Wieland flare Series Interface Relay Module, DIN Rail Mount, SPST, 1-Pole, 6A Load
Technical Document
Specifications
Brand
WielandContact Configuration
SPST
Mounting Type
DIN Rail
Number of Poles
1
Load Current Rating
6A
Minimum Input Voltage
19.2V
Load Voltage Rating
250V ac
Terminal Type
Surface Mount
Depth
6.2mm
Height
89mm
Length
70mm
Series
Flare
Contact Material
Silver Alloy
Input Current
10mA
Turn Off Time
5ms
Turn On Time
1ms
Operating Temperature Range
0 → +50°C
Standards Met
CSA, UL
Relay Switching Classification
Interface Relay Module
Minimum Operating Temperature
0°C
Maximum Operating Temperature
+50°C
Dimensions
70 x 6.2 x 89mm
Country of Origin
Japan
Product details
Terminal Block Timer Relay
Multifunction Timer has selectable functions; On delay, Off delay, interval timer, flashing - pause start, flashing - pulse start
Basic Timers have on-delay only
DIN rail mounting - only 6.2mm width
Plug in jumpers to link common potentials
Status LED
Marking label
Simple selection of function and time range using DIP switches on the side of the housing (Stock no. 341-4840)
Simple adjustment of time delay using potentiometer located behind marking label
Contact Material AgSnO2
Switching Voltage 250 Vac
Switch Power 1500 VA
