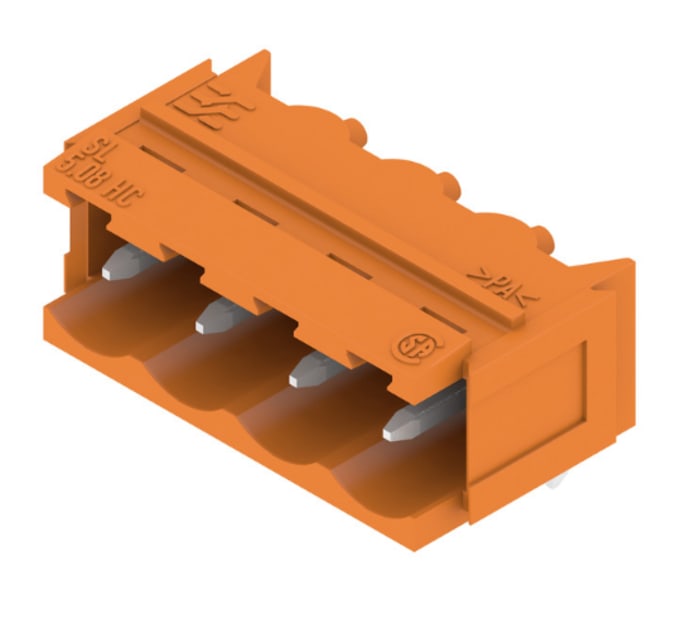

Weidmuller OMNIMATE SL Series Right Angle Through Hole PCB Header, 4 Contact(s), 5.08mm Pitch, 1 Row(s), Shrouded
Tehniskie dokumenti
Specifikācija
Brand
WeidmüllerSeries
OMNIMATE SL
Pitch
5.08mm
Number Of Contacts
4
Number Of Rows
1
Body Orientation
Right Angle
Shrouded/Unshrouded
Shrouded
Connector System
Wire to Board
Mounting Type
Through Hole
Termination Method
Solder
Contact Material
Copper Alloy
Current Rating
12.0A
Voltage Rating
380.0 V , 450.0 V dc
Izcelsmes valsts
Germany
Produkta apraksts
Horizontal Closed Ends, PCB Headers
Same PCB layout and dimensions as open end version but with closed ends, preventing mismating .,(Overall housing , 2mm wider than open end housing).
Approvals
UL (E 60693); CSA (12400)
5.08mm Pitch -Weidmüller Omnimate Range
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Noliktavas stāvoklis patreiz nav pieejams
Lūdzu pārbaudiet vēlreiz vēlāk
€ 1,70
Katrs (Paka ir 5) (bez PVN)
€ 2,057
Katrs (Paka ir 5) (Ieskaitot PVN)
5
€ 1,70
Katrs (Paka ir 5) (bez PVN)
€ 2,057
Katrs (Paka ir 5) (Ieskaitot PVN)
5
Pirkt iepakojumos
| Daudzums | Vienības cena | Per Iepakojums |
|---|---|---|
| 5 - 120 | € 1,70 | € 8,50 |
| 125 - 370 | € 1,50 | € 7,50 |
| 375 - 995 | € 1,30 | € 6,50 |
| 1000 - 1995 | € 1,10 | € 5,50 |
| 2000+ | € 1,05 | € 5,25 |
