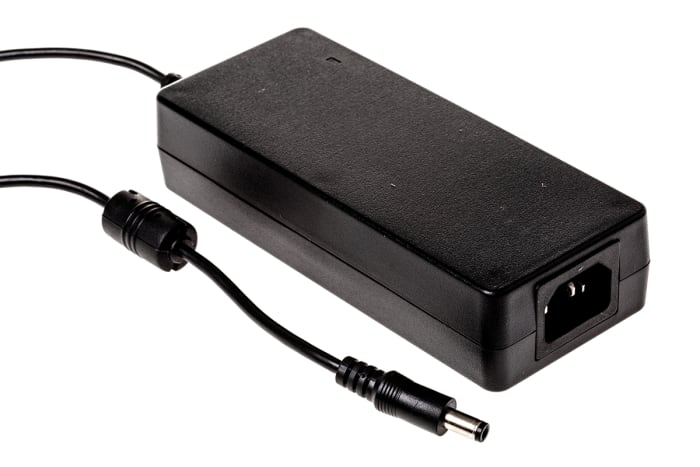

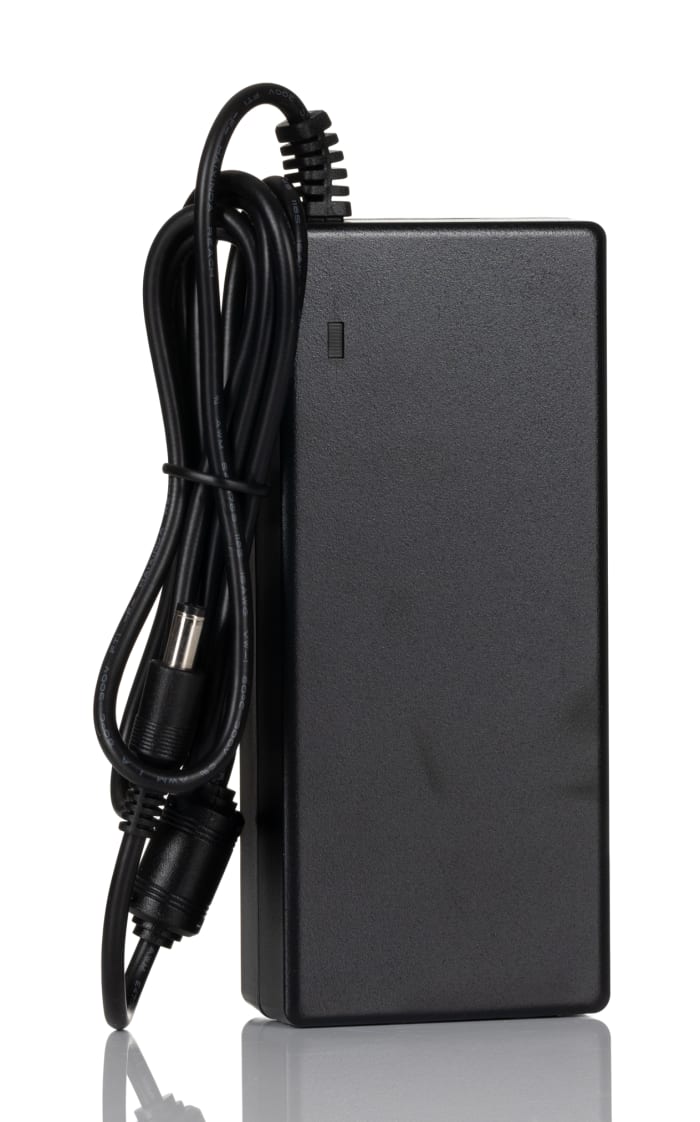

MEAN WELL 90W Power Brick AC/DC Adapter 19V dc Output, 4.74A Output
Tehniskie dokumenti
Specifikācija
Brand
Mean WellAdapter Type
Power Brick Adapter
Output Voltage
19V dc
Input Voltage
90 → 264V ac
Output Current
4.74A
Maximum Temperature
+70°C
Output Connector
P1M
Input Connector
IEC 320-C14
Number of Outputs
1
Power Rating
90W
Cable Length
1200mm
Better World Product (Find out more)
Yes
Better World Verification
UL Energy Verified
Efficiency
90%
Standards Met
AU/NZ MEPS, BSMI CNS14336, CB, CCC GB4943, CE, Class B, CNS13438, CoC Version 5, cULus, EISA 2007/DoE, EN 000-4-11, EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, Energy E
MTBF
348.7kh
Width
60mm
Depth
32mm
Minimum Temperature
-30°C
Series
GST90A
Energy Efficiency Level
VI
Load Regulation
±4%
Length
145mm
Line Regulation Range
±1%
Produkta apraksts
Meanwell 90W ErP Single Output Switch Mode Desktop Power Supply - GST90A Series
The Mean Well GST90 Series are Single Output 90W Desktop Green Adaptors. This class I desktop power supply features a very low No Load Power Consumption of ˂0.15W and up to 91% high efficiency, making it a good energy saving alternative. The GST90 comes in a 94V-0 rated plastic case, which is flame retardant and prevents users from electric shock. This Green Desktop Power Adaptor complies with energy efficiency level VI. The power adapter features an LED indicator and protections for short circuit, overload and over voltage. The GST90 guarantees safety and reliability and is ideal for applications such as consumer electronic devices, telecommunication devices, office facilities and industrial equipments.
Approvals
VI / PFC / UL / CUL / TUV / CB / FCC / CE
Standards
UL60950-1, TUV EN60950-1, BSMI CNS14336, CCC GB4943, J60950-1
Noliktavas stāvoklis patreiz nav pieejams
Lūdzu pārbaudiet vēlreiz vēlāk
€ 54,50
Katrs (bez PVN)
€ 65,94
Katrs (Ieskaitot PVN)
1
€ 54,50
Katrs (bez PVN)
€ 65,94
Katrs (Ieskaitot PVN)
1
Pirkt iepakojumos
| Daudzums | Vienības cena |
|---|---|
| 1 - 4 | € 54,50 |
| 5 - 9 | € 52,00 |
| 10 - 24 | € 49,20 |
| 25 - 49 | € 46,50 |
| 50+ | € 44,90 |
