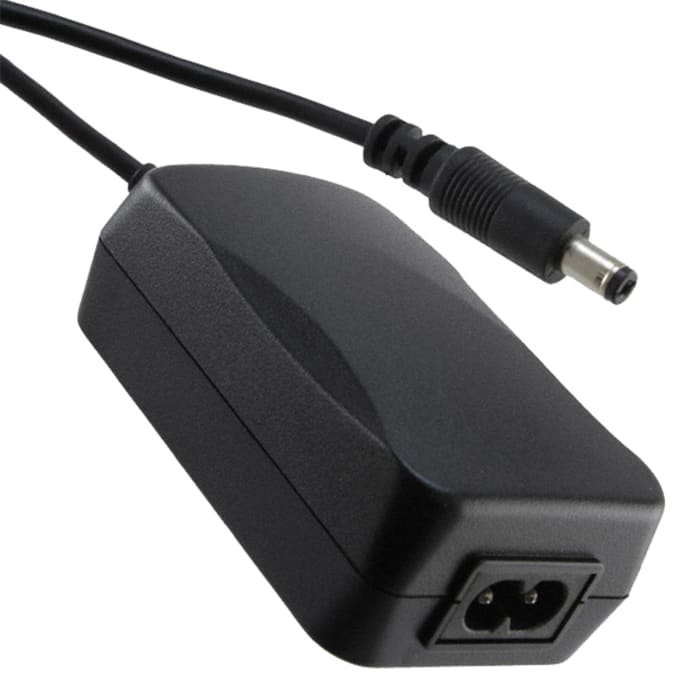

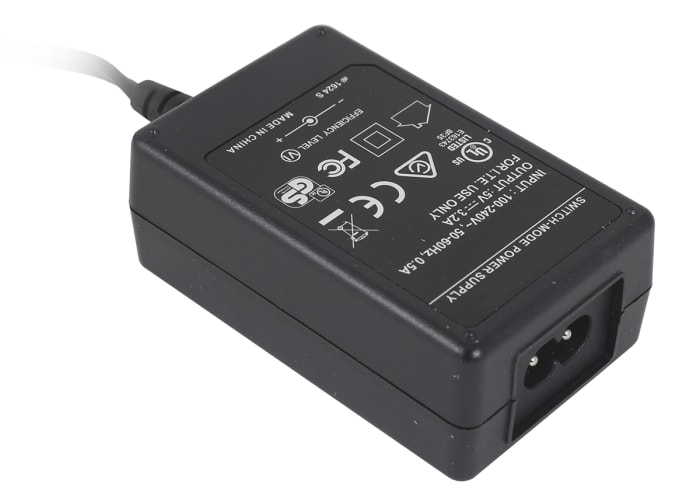

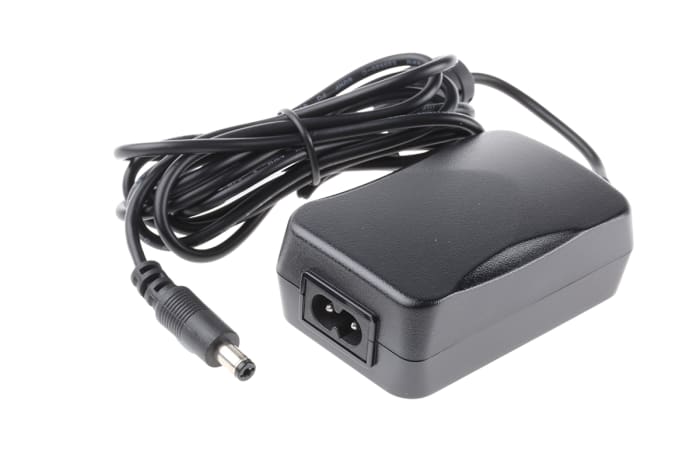

Phihong 15W Power Brick AC/DC Adapter 5V dc Output, 0 → 3A Output
Tehniskie dokumenti
Specifikācija
Brand
PhihongAdapter Type
Power Brick Adapter
Output Voltage
5V dc
Input Voltage
80 → 264V ac
Output Current
0 → 3A
Maximum Temperature
+40°C
Output Connector
DC Plug
Input Connector
IEC 60320-C8
Number of Outputs
1
Power Rating
15W
Cable Length
1000mm
Standards Met
CB, CE, cUL/UL, EN 55022 Class B, FCC Class B, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Series
PSAA15W
Energy Efficiency Level
VI
Load Regulation
±5%
Length
81.2mm
Line Regulation Range
±5%
Width
50mm
Depth
29.8mm
Minimum Temperature
0°C
Izcelsmes valsts
China
Produkta apraksts
Phihong PSA Series Desktop Power Supply
PSA series of desktop power adapter with ErP level V compliance and a wide AC input voltage range of 90 to 264 Vac. This low profile, compact, two wire input desktop power adapter has a low no load power draw of less than 0.5W and a leakage current of maximum 3.5mA. Typical applications for these desktop power adapters include portable equipment, networking, peripherals and terminals and gaming machines.
€ 19,40
€ 19,40 Katrs (bez PVN)
€ 23,47
€ 23,47 Katrs (Ieskaitot PVN)
1
€ 19,40
€ 19,40 Katrs (bez PVN)
€ 23,47
€ 23,47 Katrs (Ieskaitot PVN)
1
Noliktavas stāvoklis patreiz nav pieejams
Lūdzu pārbaudiet vēlreiz vēlāk
| Daudzums | Vienības cena |
|---|---|
| 1 - 4 | € 19,40 |
| 5 - 9 | € 18,40 |
| 10 - 24 | € 17,50 |
| 25 - 49 | € 16,50 |
| 50+ | € 15,50 |
