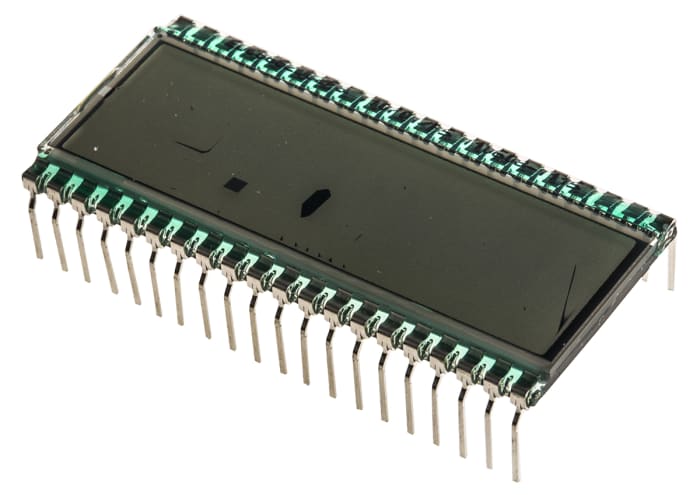

RS PRO 7-Segment LCD Display, Black on Grey, 1 Row by 3-1/2 Characters, Transflective
Tehniskie dokumenti
Specifikācija
Brand
RS ProDisplay Type
7-Segment
Character Matrix
1 Row by 3-1/2 Characters
Character Rows
1
Characters per Row
3-1/2
Character Width
7mm
Character Height
12.7mm
Viewing Area Height
18.8mm
Viewing Area Width
47mm
Viewing Area Dimensions
47 x 18mm
External Depth
2.9mm
Illumination Colour
Black
Background Colour
Grey
Backlight Type
LED
External Dimensions
50.8 x 2.9 x 30.5mm
External Height
30.5mm
External Width
50.8mm
Display Mode
Transflective
Display Matrix Technology
TN
Maximum Operating Temperature
+80°C
Minimum Operating Temperature
-30°C
Voltage Rating
5V
Series
PHT
Operating Temperature Range
-30 → +80°C
Current Rating
50mA
Izcelsmes valsts
China
Produkta apraksts
Direct-Drive 7-segment, Reflective & Transflective
Reflective,The reflective types are suitable for use in sunlight and low-light applications. Viewing is enhanced by direct sunlight. Transflective,The transflective types have the ability to be backlit making them ideal for use in low-light or no-light conditions. Suitable LED backlight panels are available: Refer to Accessories range.
Noliktavas stāvoklis patreiz nav pieejams
Lūdzu pārbaudiet vēlreiz vēlāk
€ 12,20
Katrs (bez PVN)
€ 14,76
Katrs (Ieskaitot PVN)
1
€ 12,20
Katrs (bez PVN)
€ 14,76
Katrs (Ieskaitot PVN)
1
Pirkt iepakojumos
| Daudzums | Vienības cena |
|---|---|
| 1 - 4 | € 12,20 |
| 5 - 9 | € 10,20 |
| 10 - 24 | € 9,20 |
| 25+ | € 8,50 |
Tehniskie dokumenti
Specifikācija
Brand
RS ProDisplay Type
7-Segment
Character Matrix
1 Row by 3-1/2 Characters
Character Rows
1
Characters per Row
3-1/2
Character Width
7mm
Character Height
12.7mm
Viewing Area Height
18.8mm
Viewing Area Width
47mm
Viewing Area Dimensions
47 x 18mm
External Depth
2.9mm
Illumination Colour
Black
Background Colour
Grey
Backlight Type
LED
External Dimensions
50.8 x 2.9 x 30.5mm
External Height
30.5mm
External Width
50.8mm
Display Mode
Transflective
Display Matrix Technology
TN
Maximum Operating Temperature
+80°C
Minimum Operating Temperature
-30°C
Voltage Rating
5V
Series
PHT
Operating Temperature Range
-30 → +80°C
Current Rating
50mA
Izcelsmes valsts
China
Produkta apraksts
Direct-Drive 7-segment, Reflective & Transflective
Reflective,The reflective types are suitable for use in sunlight and low-light applications. Viewing is enhanced by direct sunlight. Transflective,The transflective types have the ability to be backlit making them ideal for use in low-light or no-light conditions. Suitable LED backlight panels are available: Refer to Accessories range.
